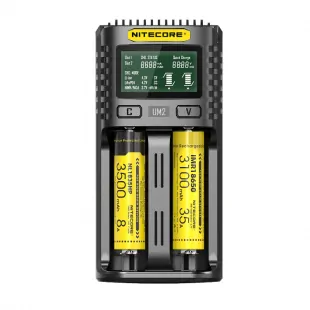

Charger UM2 Nitecore | ArmyMarket.gr

Two-position charger from Nitecore model UMS2 that ensures the fastest and safest charging of your rechargeable batteries. Ideal for travel as its small size allows you to easily carry it with you. A super smart two position charger with quick charge (QC) capability, total maximum charge current 3000mA (QC) and single position maximum charge current can reach 1500mA (QC, can charge one 18650/3500 battery in 55 minutes).

Digital liquid crystal display (LCD) for real-time presentation of charging information. Charging from a USB port makes it an ideal charger for outdoor activities. It has an improved charging program for IMR battery. Detects internal resistance and battery health. UMS2 automatically selects between three programs (CC, CV and -dV / dt) according to the type and capacity of the batteries. Charging parameters can be manually adjusted to meet different needs. It is compatible with various external energy sources such as USB adapters, Power Banks, Solar Panels, etc. It has the ability to restore over-discharged IMR batteries. The UMS2 has the ability to activate over-discharged Li-ion batteries. UMS2 will check and activate before starting charging.

When the battery is damaged the screen will show the message “EE EE”. It has reverse polarity and short circuit protection. If there is no action on the charger buttons within 10 minutes, the display will turn off to save power. It is made of durable polycarbonate materials, fire retardant. It incorporates a smart temperature regulation system designed to protect it from overheating. The unique cooling fins are designed for excellent cooling performance

Product characteristics:

• Overload protection
• Smart two-position USB charger
• Quick Charge Capability (QC 2.0)
• RoHS, CE, FCC and CEC certified
• Activation of over-discharged batteries
• Li-ion Li-ion battery reconditioning
• Design for maximum heat dissipation
• Reverse polarity and short circuit protection
• Automatic termination of charging upon completion
• Charging speed up to 1500mA in a single charging position
• Compatible with Li-ion and Ni-MH / Ni-Cd batteries with automatic recognition
• Automatic selection between three (3) charging methods (CC, CV and -dV / dt)
• Made of durable fire retardant polycarbonate materials
• Able to charge two batteries simultaneously and control each charging position independently
• Insured globally by Ping An Insurance (GROUP) Company of China LTD
• It is possible to manually adjust the charging cut-off voltage and charging current
• Automatic identification of large or small capacity batteries and automatic selection of the appropriate charging current
• LCD liquid crystal display with low power consumption for real-time presentation of charging information
• Automatic recognition of battery energy level and automatic selection of appropriate voltage and charging mode (except LiFePO4 and 3.8V Li-ion batteries)

Technical data

1. Dimensions: 152mm x 73mm x 40mm
2. Normal operation: 1000mA * 2 (MAX)
3. Weight: 148.3g (Without the charging cable)
4. Input : 5V / 2A , 9V / 2A , 18W (MAX)
5. Output: 4.35V ±1% / 4.2V ±1% / 3.7V ±1% / 1.48V ±1%
6. Quick charge function (QC) : 1500mA * 2 (MAX)
7. Compatible with Ni-MH/Ni-Cd batteries: AA, AAA, AAAA, C, D
8. IMR/Li-Ion/LifePO4 compatible batteries: 10440, 14500, 14650, 16500, 16340 (RCR123), 16650, 17350, 17500, 17650, 17670, 17700, 18350, 18490, 18500, 18650, 18700, 20700, 21700, 21700 , 22500, 22650, 25500, 26500, 26650, 2670
